Installation Instructions

Ford Focus Mk3 Clutch Spring Retainer

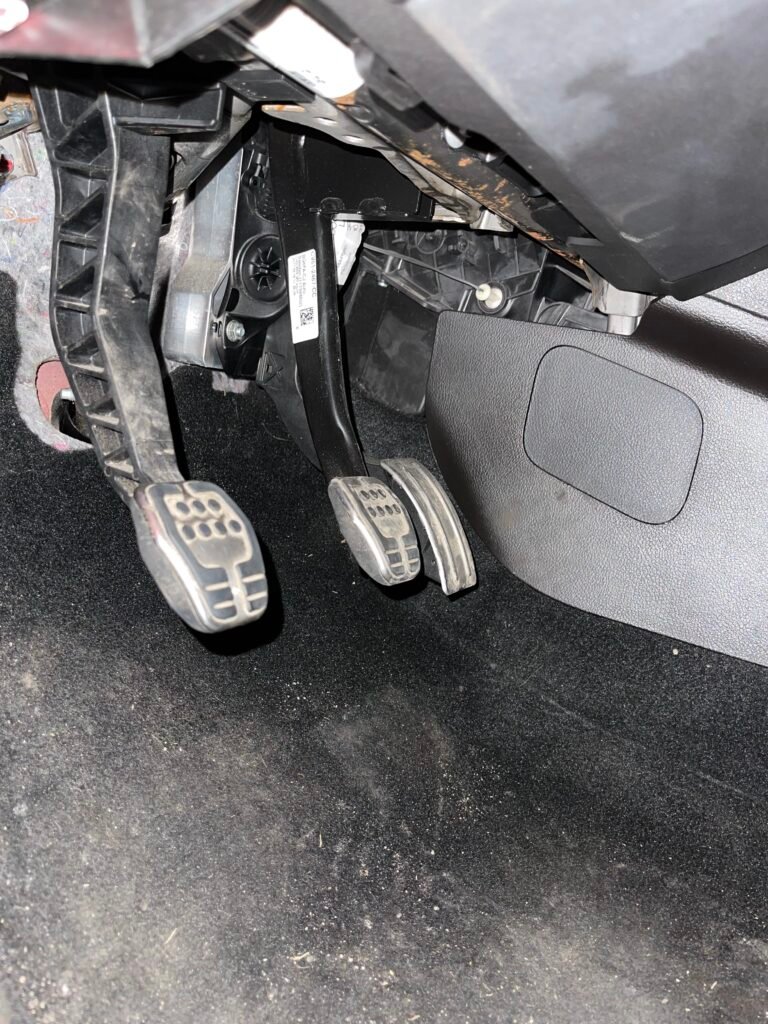

Step 1: Locate clutch pedal and clutch spring. Clutch spring is located at the upper most left section of the clutch pedal.

Img 7428

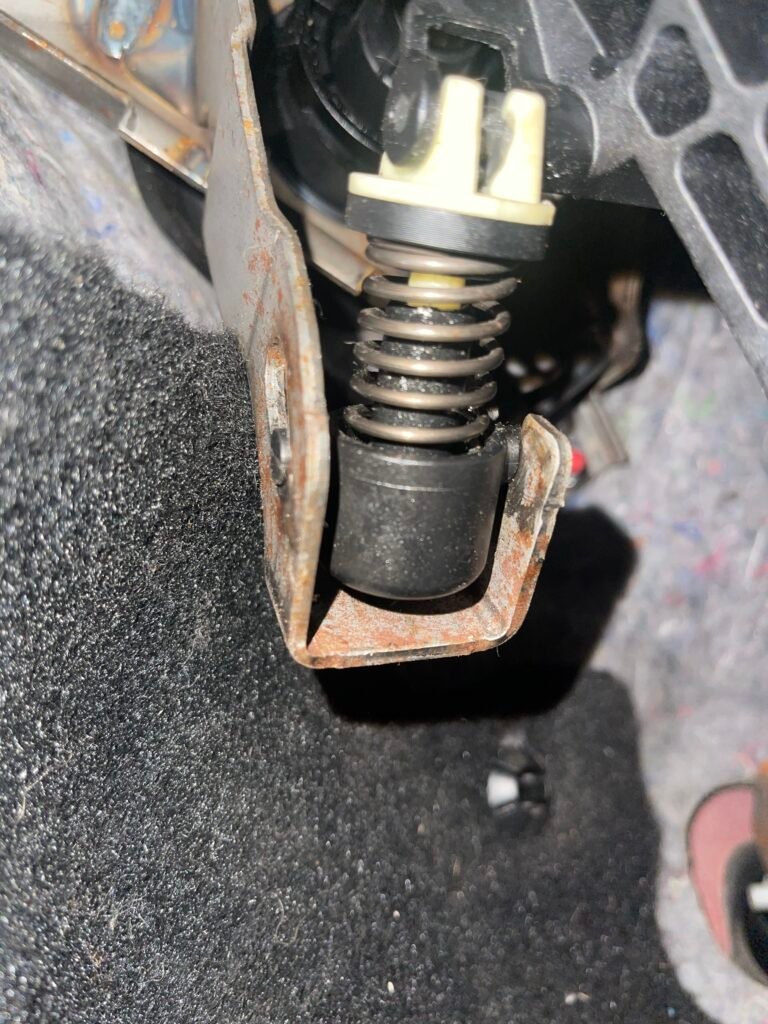

Step 2: Compress clutch pedal and remove clutch spring. To remove, lift the bottom of the spring up, removing the right peg then the left.

*Installation is reverse of removal*

Img 7435

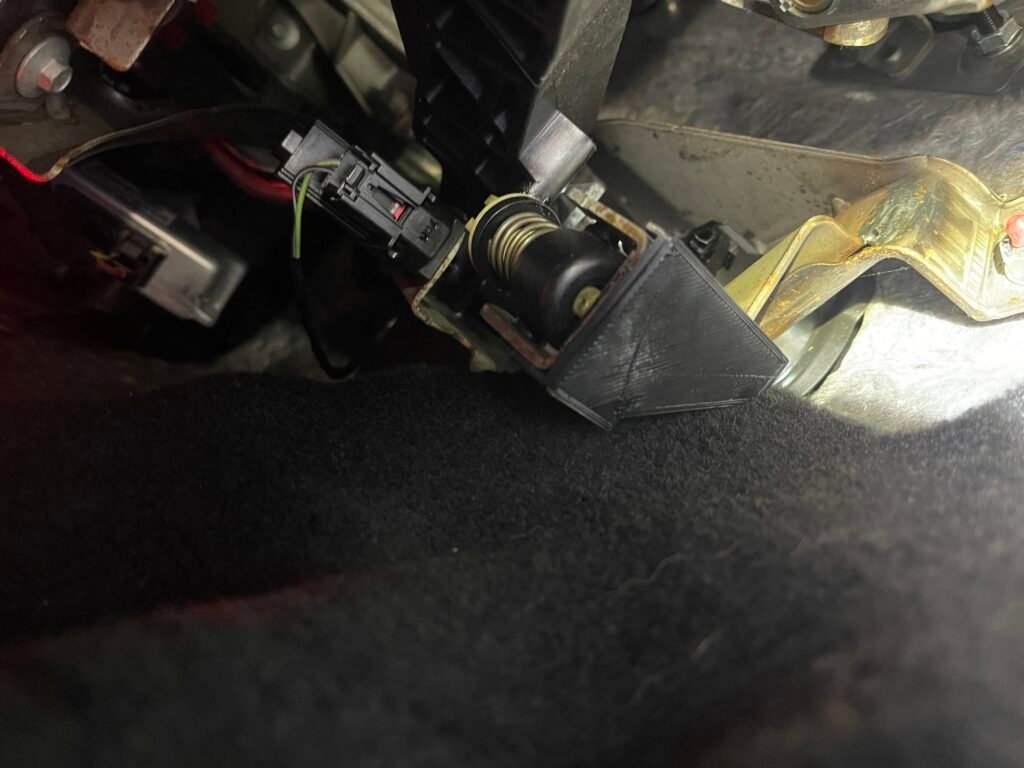

Step 3: Once spring is removed, slide our product in a similar position. Slide from the front towards the firewall (the bottom should be flat and the shape should mimic the metal). Once installed, reinstall spring.

Img 7480
